Raw-Edge-Belts




Structure:
1. Top Fabric: Polyester cotton (Protect the lining tensile member)
2. Embedding Compound: CR/EPDM (Support and protect the adhesive force of the tensile member)
3. Tensile Member : Polyester (Critical material to pass the dynamic force and endure high shock load)
4. Bottom Rubber: CR/EPDM (Maintain the shape of the rubber and improve its side compression ability and wearability)
5. Botom Fabric: Elastic Fabric (Absorb the impact and prevent crack of the core rubber)
Features:
1. Large intensity, high flexibility, good durability
2.Special bottom rubber used, small elongation and long service life
3.Excellent heat-resistant, oil-proof, and wearing resistance
4.High transmission efficiency
5.Suitable for band pulley with minor diameter
6.Safe performance can be guaranteed even during high-speed operation
Type | Size | Top width x Belt thickness | Effective width bw | Nominal length | Length conversion | Details |

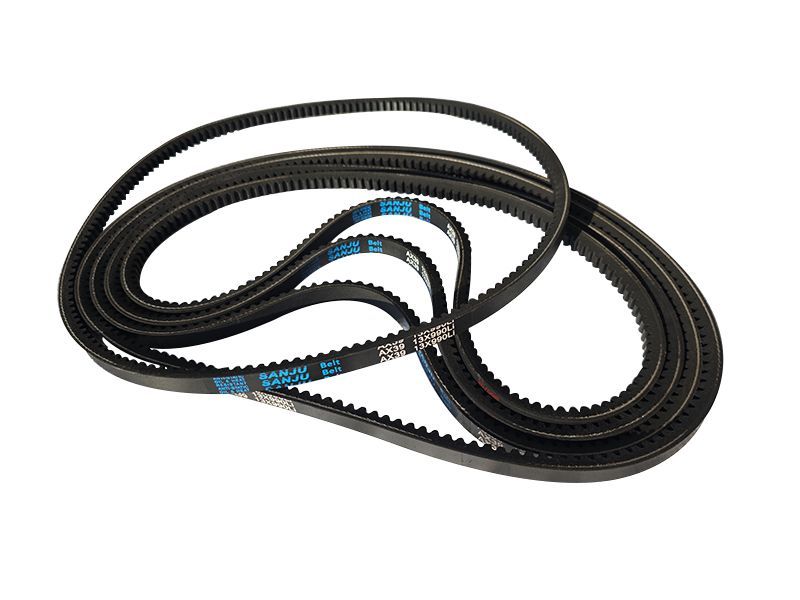

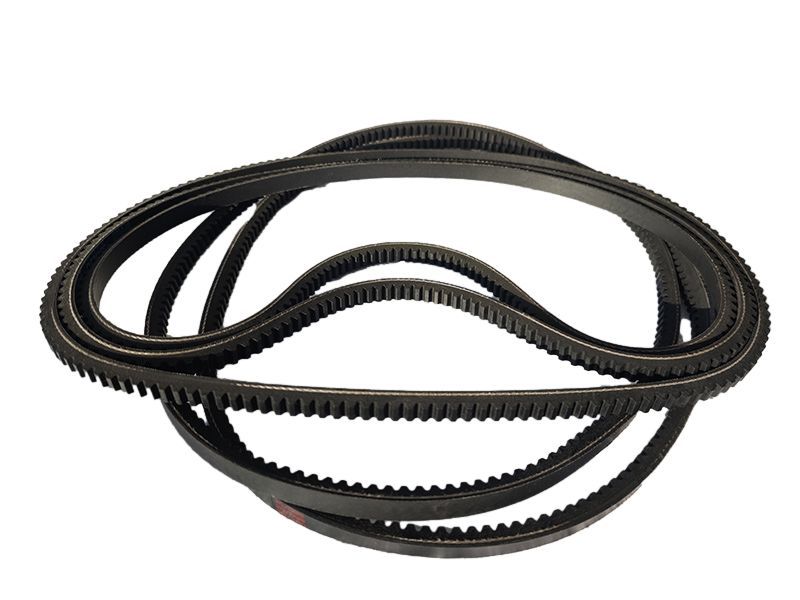

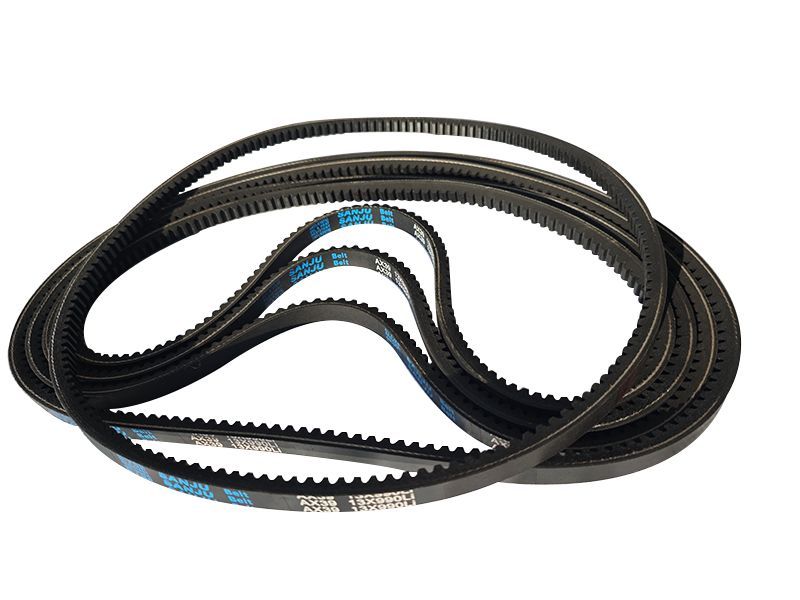

Raw Edge Cogged V-Belt | ZX / 10X | 10.0 × 6 | 8.5 | La |
La=Ld+16 La=Li+38 |
Details |

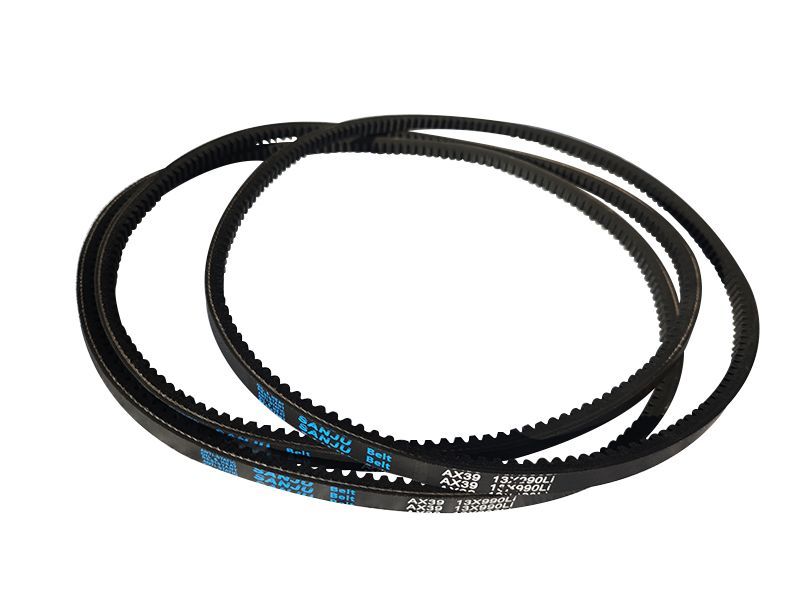

AX / 13X | 13.0 × 9 | 11.0 | Li |
La=Ld+20 La=Li + 56 |
Details | |
BX / 17X | 17.0 × 11 | 14.0 | Li |
La=Ld+29 La= Li + 69 |
Details | |
CX / 22X | 22.0 × 14 | 19.0 | Li |
La=Ld+30 La=Li + 88 |
Details | |
Narrow Cogged V-Belt | XPZ | 9.7 × 8 | 8.5 | Ld |
La≈Ld + 13 La≈Li + 51 |
Details |
XPA | 12.7 × 10 | 11.0 |
La≈Ld + 18 La≈Li + 63 |
Details | ||
XPB | 16.3 × 13 | 14.0 |
La≈Ld+22 La≈Li+82 |
Details | ||
XPC | 22.0 × 18 | 19.0 |
La≈Ld + 30 La≈Li+113 |
Details | ||
3VX | 9.5 × 8 | - | La=Li+50 | Details | ||
5VX | 16 x 13.5 | - | La=Li+85 | Details |
