Banded Belts

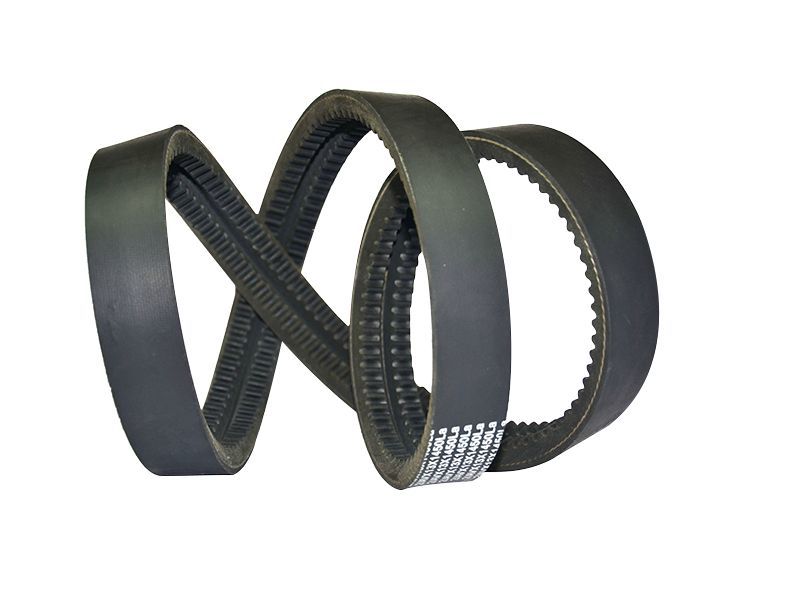

COGGED BANDED BELTS

Features:
* Enhanced power transmission capacity up to 25%
* Lesser number of belts required as compared to multiple single-belt drives
* High adhesion strength between tie band and the belts
* Eliminates chances of mismatch in length as observed in multiple single-belt drives
* Antistatic, oil and heat resistant
* ATEX certified FRAS belts are available
* Manufactured through the single-stage curing process

Section	Top width (mm)	Pitch (mm)	thickness (mm)	Angle (°)	Pitch (mm)	Length Range (Min.)	Length Range (Max)	Factory Mark.
HAX	13.0	15.9	10	36	15.9	23.5"	122"	Li
HBX	17.0	19.0	13	36	19	23.5"	122"	Li
HCX	22.0	25.5	16	36	25.5	23.5"	122"	Li
HXPZ	10.0	12.0	10	36	12	600mm	3100mm	Lp
HXPA	13.0	15.0	12	36	15	600mm	3100mm	Lp
HXPB	17.0	19.0	16	36	19	600mm	3100mm	Lp
HXPC	22.0	25.5	20	36	25.5	600mm	3100mm	Lp
H3VX	9.5	10.3	10	36	10.3	23.5"	122"	La
H5VX	15.8	17.5	16	36	17.5	23.5"	122"	La

WRAPPED BANDED BELTS

Section	Top width (mm)	Pitch (mm)	thickness (mm)	Angle (°)	Length Conversion	Length Range (Inch)	Length Range (mm)	Factory Mark.
HA	13.6	15.6	10.0	40	Li = La - 63	57-197	1200-5000	Li
HB	17.0	19.0	13.0	40	Li = La - 82	57-394	1200-5000	Li
HC	22.4	25.5	16.0	40	Li = La - 100	79-197	2000-5000	Li
HD	32.8	37.0	21.5	40	Li = La - 135	158-590	4000-15000	Li
HSPZ	10.5	/	10.0	40	La = Li + 63	47-197	1200-5000	La
HSPA	13.6	/	12.3	40	La = Li + 78	57-394	1200-10000	La
HSPB	17.0	/	16.5	40	La = Li + 105	118-590	3000-15000	La
HSPC	22.0	/	21.0	40	La = Li + 132	59-197	1500-5000	La
H3V	9.7	10.3	9.7	40	La = Li + 63	47-197	1200-5000	La
H5V	15.7	17.5	15.7	40	La = Li +98	63-394	1600-10000	La
H8V	25.4	28.6	25.4	40	La = Li + 157	118-492	3000-12500	La
